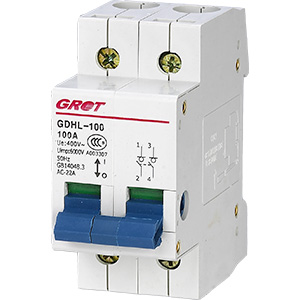

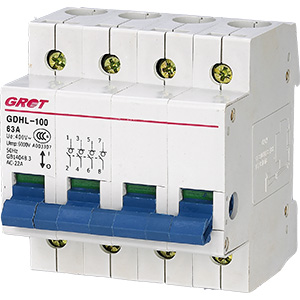

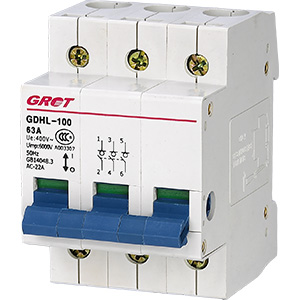

GDHL-100 series isolating switch is suitable for AC 50Hz rated working voltage to 400V, agreed heating current up to 100A, low-power electrical appliances and lighting distribution circuit and motor circuit, widely used in industrial and mining enterprises, high-rise buildings, commercial and residential places.

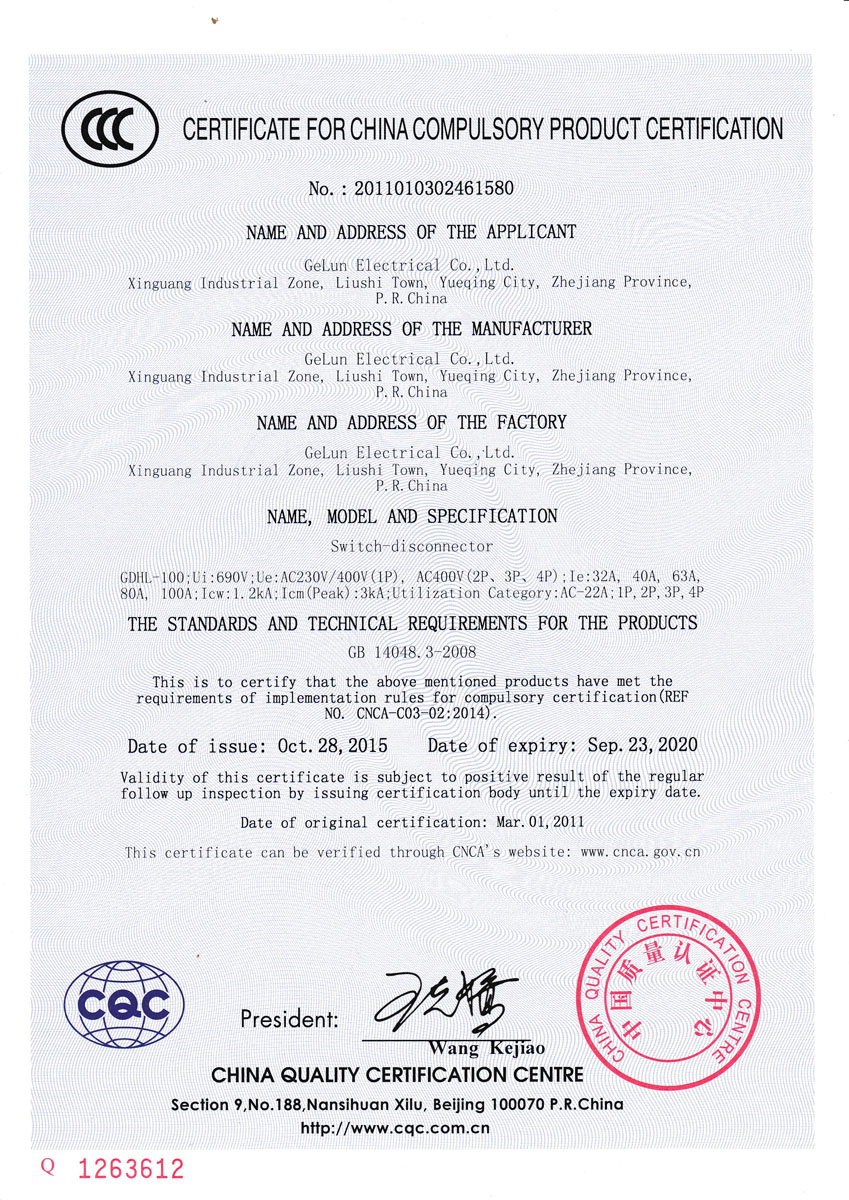

Comply with the IEC60947-3、GB/T 14048.3 Standard

Frame Size：100

Current Grade：32-100A

Rated Short-time Withstand Current：Icw:1.2 kA -t=1s

Rated Short-circuit Connect Capability：Icm（Peak Value）：3.0kA

Poles：1、2、3、4
